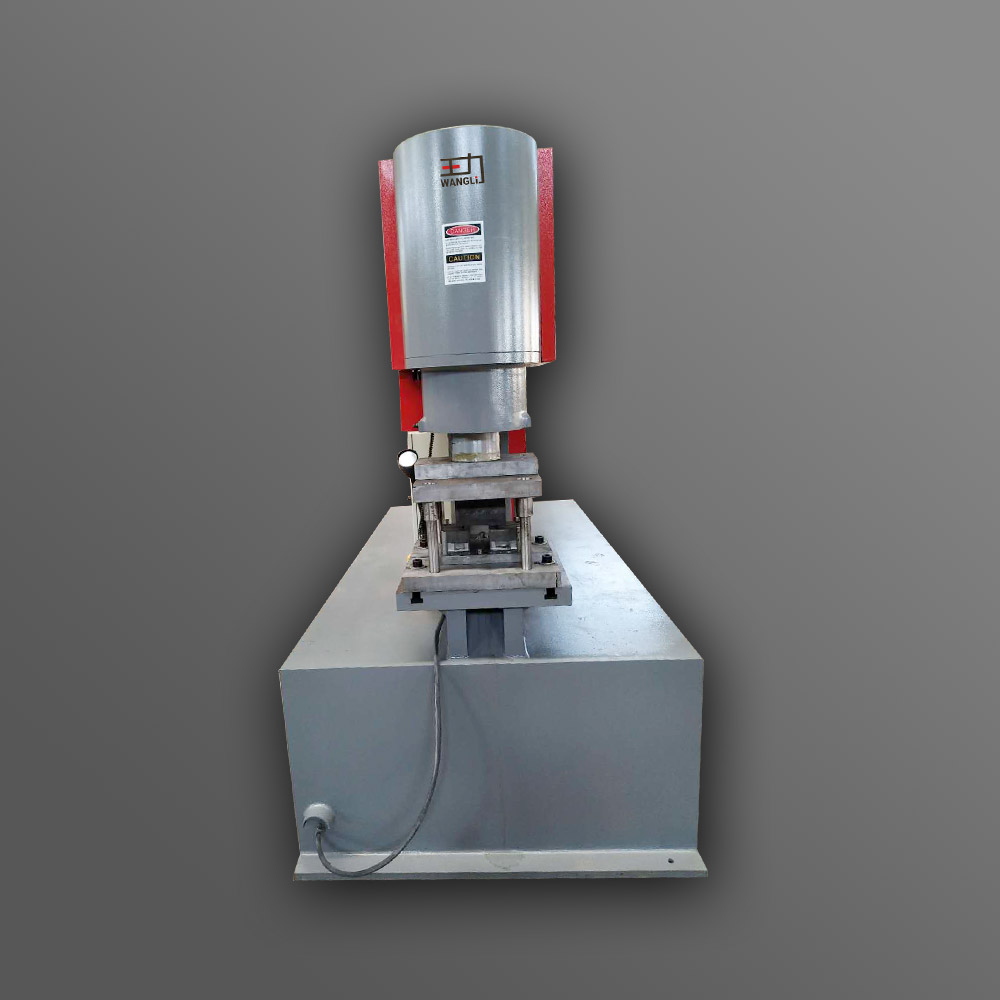

By using hydraulic transmission,it is the latest product of single hole punching machine.It can do the hole punching on plate,angle steel,channel steel and I-steel.
Technical Data：
| Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-40 |
Q35Y-50 |
| Pressure |
60T |
90T |
120T |
160T |
200T |
250T |
| Ram stroke(mm) |
80 |
80 |
80 |
80 |
100 |
100 |
| Number of stroke(cpm)80mm |
12 |
12 |
10 |
10 |
10 |
10 |
| Number of stroke(cpm)20mm |
25 |
25 |
25 |
25 |
20 |
20 |
| Power of main motor(kw) |
5.5 |
7.5 |
7.5 |
11 |
15 |
18.5 |
| Throat Depth(mm) |
300 |
350 |
400 |
600 |
650 |
650 |
| Overall dimensionsL×W×H(mm) |
1200×730×1770 |
1360×800×1900 |
1480×1160×2090 |
1680×1280×2300 |
1800×1380×2300 |
1900×1450×2450 |

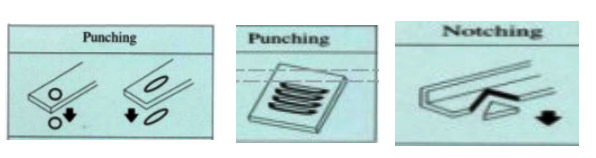

Function Photo:
