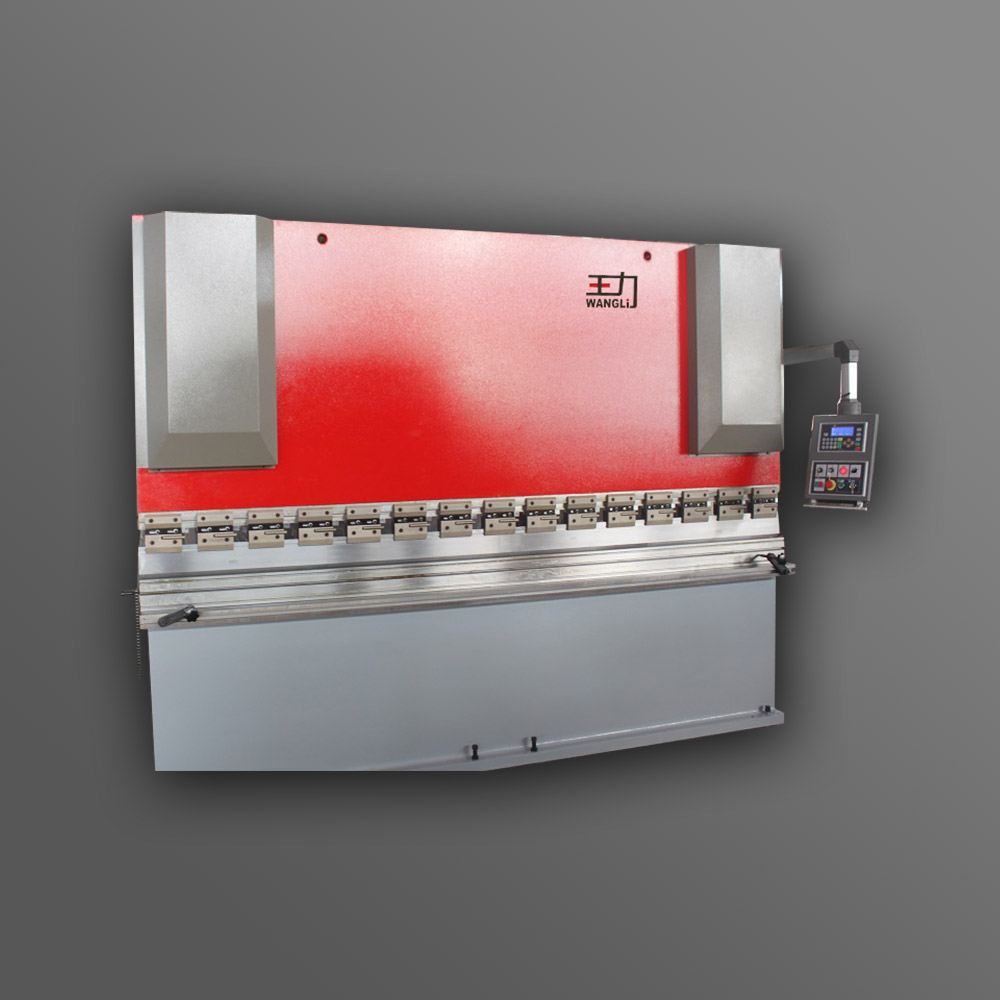

W67Y series Hydraulic Press Brake
The machine adopts hydraulic cylinders driving; the slider adopts mechanical synchronizing which keeps the machine stationary & reliable during working. The machine is equipped with power adjusting devices for slider stroke and the back gauge with a manual fine adjusting mechanism and a counter displaying the position of the stop. An adjusting device of wedge type is fixed on the upside of the upper tool to ensure the precise bending work.
Technical Data
l *means the machine can equipped with CNC system.
l A special order for the special moulds is required.
| Model |
*25/1600 |
*40/2000 |
*63/2500 |
*63/3200 |
*80/3200 |
*100/3200 |
| Nominal Pressure (KN) |
250 |
400 |
630 |
630 |
800 |
1000 |
| Length of working Table (mm) |
1620 |
2000 |
2500 |
3200 |
3200 |
3200 |
| Distance between poles (mm) |
1300 |
1640 |
2050 |
2710 |
2400 |
2600 |
| Throat depth (mm) |
200 |
200 |
250 |
250 |
320 |
320 |
| Ram stroke (mm) |
80 |
80 |
100 |
100 |
100 |
150 |
| Max. open height between working table and slider (mm) |
300 |
360 |
360 |
360 |
340 |
415 |
| Power of main motor (KW) |
4 |
4 |
5.5 |
7.5 |
7.5 |
7.5 |
| Overall dimensions L x W x H (mm) |
1660 1090 1960 |
2060 1660 2234 |
2600 1735 2234 |
3260 1735 2347 |
3260 1430 2250 |
3260 1735 2500 |
| Weight of machine (KG) |
2500 |
3300 |
4220 |
5550 |
5900 |
8000 |
